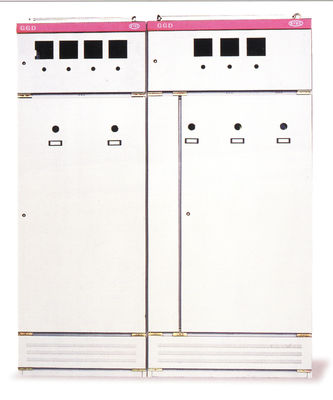

Art Motorsteuerungs-Schaltanlagen-einfache Versammlung 380V GGD

Art Motorsteuerungs-Schaltanlagen-einfache Versammlung 380V GGD
Art Motorsteuerungs-Schaltanlagen-einfache Versammlung 380V GGD

Großes Bild :  Art Motorsteuerungs-Schaltanlagen-einfache Versammlung 380V GGD

Produktdetails:
Herkunftsort: China
Markenname: KNKONG
Zertifizierung: CCC ISO9001 GB7251 IEC439
Modellnummer: GGD
Zahlung und Versand AGB:
Min Bestellmenge: 1
Verpackung Informationen: Standardexport-Verpacken
Lieferzeit: 15 Werktage
Zahlungsbedingungen: L/C, T/T
Versorgungsmaterial-Fähigkeit: Einheit 500 pro Monat
Kontakt

Art Motorsteuerungs-Schaltanlagen-einfache Versammlung 380V GGD

Beschreibung
Funktions-Spannung: Maximales 380V Arbeitsfrequenz: 50 / 60Hz
Unter Verwendung: Motorsteuerung Standerds: CCC ISO9001 GB7251 IEC439
OEM/ODM: Verfügbar Manufaktur: KNKONG
Markieren:

GGD-Art Motorsteuerungs-Schaltanlage

,

Schaltanlage der Motorsteuerungs-380V

,

Einfache Versammlungs-Motorsteuerungs-Schaltanlage

380V GGD type motor control panel

380V, 50/60 Hz
Modular design, easy assembly
Enclosure: Max. IP40
CCC,ISO9001,GB7251,IEC439
Send us your SLD (Single Line Drawing) or requirements, we design the switchgear plan for you

Inquire

Product Introduction

General

GGD type AC low-voltage power distribution cabinet is suitable for power users of power plants, substations, factories and mining enterprises, etc., in the power distribution system of AC 50Hz, rated voltage 380V, and rated current 1000A to 3150A, as power, lighting and electrical energy for power distribution equipment For conversion, distribution, and control purposes. GGD AC low-voltage power distribution cabinet is a new type of low-voltage power distribution cabinet designed based on the principles of safety, economy, reasonableness and reliability. The product has the characteristics of high breaking capacity, good dynamic and thermal stability, flexible electrical scheme, convenient combination, strong series and practicability, novel structure and high protection level. It can be used as a replacement product for low-voltage switchgear. The GGD AC low-voltage power distribution cabinet complies with IEC439 "Low-Voltage Switchgear and Control Equipment", GB/T7251 "Low-Voltage Switchgear" and other standards.


Conditions of Use
1. The ambient temperature is not higher than +40℃ and not lower than -5℃.
2. When the product is installed and used, the altitude of the place of use should not exceed 2000M.
3. The relative humidity of the surrounding air is not more than 90% (+25℃).
4. The equipment should be installed in a place without severe vibration and impact, and in a place where the electrical components are not corroded.
5. The relative humidity of the surrounding air does not exceed 5% when the maximum temperature is 40 degrees, and a larger relative temperature is allowed at a lower temperature, which should be considered due to
Temperature changes may occasionally produce condensation effects
6. The equipment is installed in a place where there is no severe vibration and impact, and where the electrical components are not corroded
7. When the user has special requirements, it can be resolved through consultation with the manufacturer

Features
1. According to the purpose, it is divided into power receiving cabinet, busbar connection cabinet, feeder cabinet, motor control cabinet, reactive power compensation cabinet, lighting power distribution cabinet.
2. Cabinet structure:
(1) The cabinet frame is partially welded and assembled with 8MF cold-formed steel. The frame has mounting holes arranged according to the modules of E=20mm and E=100mm to improve the versatility of product assembly.
(2) The ZMJ type busbar clamp, which is thermoformed with high flame-retardant PPO material, has a modular structure with high mechanical strength and insulation.
(3) The 1000mm and 1200mm wide cabinets adopt  symmetrical double-door structure on the front, and the 600mm and 800mm wide cabinets adopt a whole door structure. The back of the cabinet adopts a symmetrical double-door structure. The cabinet structure is not installed against the wall.
(4) The cabinet door is connected to the frame with a galvanized shaft hinge, which is convenient for installation and disassembly. There are rubber inserts at the folding edge of the door.
(5) The grounding knurled screw structure is used between the installation parts in the cabinet and the frame to form a complete grounding protection circuit.
(6) The top cover of the cabinet body can be removed when needed to facilitate the assembly and adjustment of the main bus.
